P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display

Shenzhen Dehao Optoelectronic Technology Co.Ltd
Contact Now
    Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers

    Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers
    • Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers
    • Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers
    • Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers
    • Buy cheap P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display from wholesalers

    P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display

    Ask Lasest Price
    Brand Name : Dehao
    Model Number : P4
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3000 square meter per month
    Delivery Time : 7-15 working days after payment
    • Product Details
    • Company Profile

    P4 Outdoor SMD2525 Advertising LED Screen 6500 nits High Brightness Fixed LED Display

    P4 outdoor fixed installation smd2525 advertising led display 6500 nits 64x32 dot
    Technical Parameter:
    Pixel pitch(mm)4mm
    Size(W×H)256mm×128mm
    Density(dots/ ㎡)62500 dots/sqm
    Resolution(W×H)64*32dots
    Led chipKinglight
    Colors1R1B1G
    Led pecsSMD2525
    Best viewing distance4-100m
    Best view angleH140,V120
    Module WeightAbout 320g
    Working voltage220V±10%
    Suitable voltageDC 5V
    Average Power consumption550W/㎡
    Largest power consumption1000w/㎡
    Control methodNovaStar/Colorlight/Listen/Huidu
    Scanning method1/8 Constant current
    Frame frequency≥60HZ/s
    Refresh frequency≥1920HZ/s
    Gray color4096 lever, can display 16.7M colors
    Brightness≥6500 cd/㎡
    Brightness control leversoftware can chance 100lever
    MTBF≥10000H
    life100000H
    Power5V/40A 5V/60A



    Product Features:
    1) High brightness(>6500cd/㎡ ), adjustable.
    2) Clear vivid image quality.
    3) Good Raw Materials: Kinglight/Nationstar led chip, Nationstar led lamp, Chipone/MBI IC, G-energy/Chenglian/ Meanwel Power Supply.
    4) Installation is simple by fast lock.
    5) High stability and long span: Aging test at least 24 hours before shipment, 100, 000 hours life span.
    6) Cabinet: Diecasting aluminum rental cabinets 640*640mm or standard iron waterproof 960*960 cabinets.
    7) Package: Flight case, wooden box package & carton box and so on.
    8) Guarantee:2 years.



    Application:
    Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.

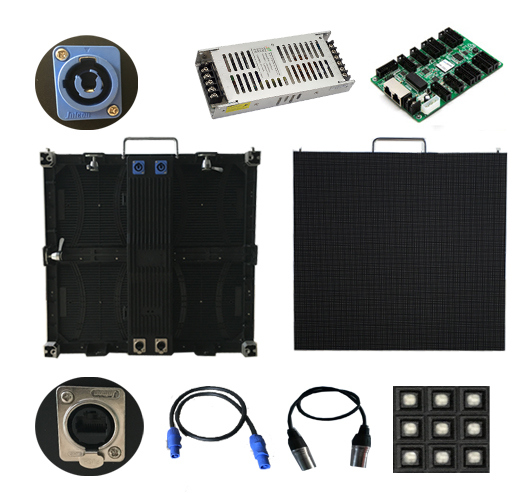

    5. Accessories:
    Full Color Outdoor Rental P4 Stage LED Display Screen
    (1) LED unit module board &IC

    The quality of LED module directly affects displaying effect.
    LED module consists of LED lamps, driven IC and PCB circuit board.

    IC: ICN2037

    LED encapsulation : Nationstar/ Kinglight

    (2) Frame or Cabinet

    Aluminum Frame or iron cabinet is used to hold up module boards/panels.

    (3) Power supply

    Switch power supply : G-Energy ; C.L. ; Meanwell!
    Input 220V / 110V and Output 5V DC

    (4) Control Card

    Novastar/Listen/Colorlight/ Huidu High refresh Control Card

    Cabinets:

    1024*1024mm Standard iron cabinet or 768*768mm diecasting aluminum cabinets.
    Full Color Outdoor Rental P4 Stage LED Display Screen


    Package:

    Flight case or wooden case or carton or customized.
