    Traffic P5 Full Color LED Sign for Outdoor Advertising Pedestrian Bridge Display

    Ask Lasest Price
    Brand Name : Yuto
    Model Number : P5
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 3000 square meter per month
    Delivery Time : 10-15 working days after deposit
    • Product Details
    • Company Profile

    Traffic P5 Full Color LED Sign for Outdoor Advertising Pedestrian Bridge Display

    Traffic Sign P5 Full Color LED Sign for Outdoor Advertising Pedestrian Bridge Display

    Product Description

    Technical Parameter

    LED Light Parameter

    LEDLED brandLED typewave Length(nm)Average Brightness
    (mcd)
    Test Condition
    Red(R)SananSMD
    2121 (Black)
    620-625nm130-190mcd25ºC,20mA
    Green(G)Huacan516-530nm200-300mcd25ºC,10mA
    Blue(B)Huacan465-475nm23-40mcd25ºC,5mA

    Pixel/Module
    NoItemParameter
    1Pixel Pitch5 mm
    2Pixel Configuration1R1G1B / R:G:B=3:6:1
    3LED LampFull color
    4Density40000dot/m2
    5Module Size320*160mm
    6Module Pixel32*32=1024dot
    7Module Thickness16mm
    8Module Weight267g
    9Module Power≤21W
    10Drive ValtageDC5V
    11Module Electric Current4.2A
    12PortTypeHUB-75D/B
    Traffic Sign P12.5 Full Color LED Sign for Outdoor Advertising Pedestrian Bridge Display

    Screen Parameters
    NoItemParameter
    1Standard Cabinet Size640mm*640mm*76mm
    2Cabinet Weight13.5KGS
    3Brightness/Adjustment≥5500cd/m², Level 16- Automatic / Level 100-Manual operation
    4View Angle≥120°(Vertical),≥120°(Horizontal)
    5Best View Distance5-15m
    6Grey ScaleWithin 65536 Step
    7Frame Frequency≥60Hz
    8Refresh Rate≥720Hz
    9Signal Input SourceComposite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
    10Scan Mode1/8Scan
    11Drive IC5020
    12Module Qty / M239
    13Display Color Qty16777216
    14Continuous Working Time>24(Hrs)
    15Screen Lifespan>100,000(Hrs)
    16MTBF>5000(Hrs)
    17Max. power consumption850W/m2
    18Ave. power consumption280W/m2
    19Out of control pixel rate≥3/10,000(discrete distribution)
    20Control Distance100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
    21FlatnessScreen Surface≤0.5mm,Pixel Pitch≤0.3mm
    22Operation Temperature-10ºC~+50ºC
    23Working Humidity10%~98%RH
    24Storage Temperature-40ºC~+85ºC
    25Software ConnectionStandard Computer Connection,Compatiable With Windows,Unix,Novell
    26protection systemOvertemperature/overload/power/image compensation/nonlinear correction
    27Working Valtage200~240 V
    28Dielectric Strength50HZ/1500V(AC RMS)/1min
    29Temperature RiseMetal≤40K,Insulation≤65K , After Heat Balance
    30IP GradeIP65
    31Computer display mode1024*768
    33Media PlayerLED Professional Media Player

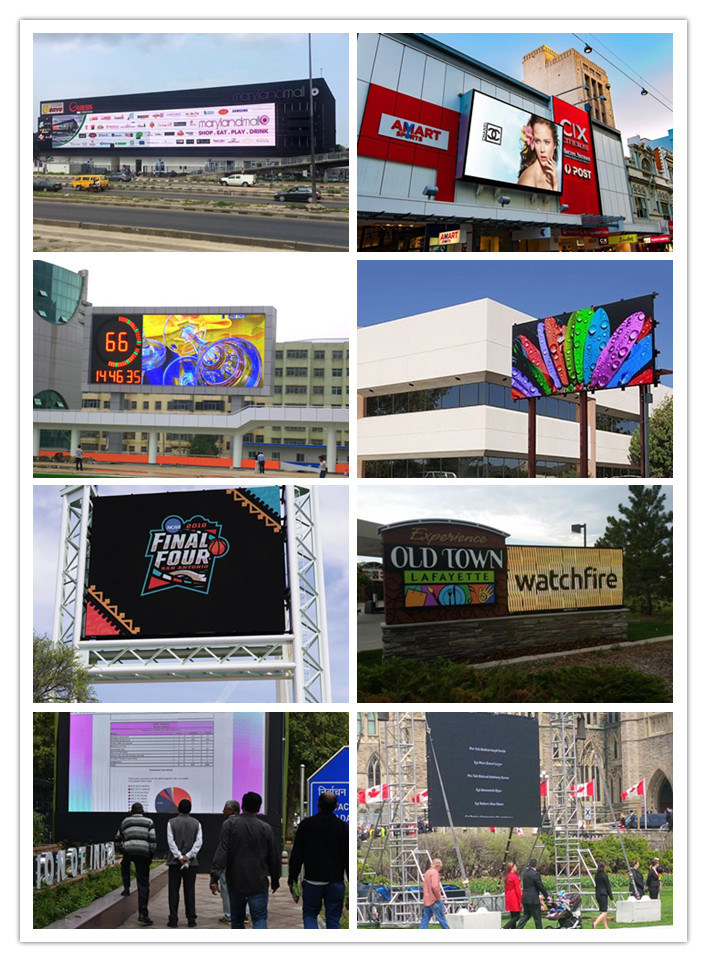

    Application Case:

    Product Advantages:
    High refresh rate: With NOVA control system,no scanning line when photographed.
    High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect.
    High resolution: The most apparent features of the new generation of LED display.
    Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
    High Brightness: 6000-8000cd/m2, brightness automatically adjusted.
    High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
    Long life span: over100,000hours, warranty at least 2 years.
    You need = We design: Provide Personal- Customized led offer.

    Price Advantage:

    We have the best competitive price at the market, also have the same even better quality
    Quality advantage:

    From material to finished product, from design to produce, we control all steps,that's the guarantee of the quality and reliability
    Service advantage:

    Better service at same situation, better cooperation at same service.
    Performance Advantage:

    Best equality, high consistency, big viewing angle, can repair each led lamps

    Die Casting Aluminum Cabinet
    Application Range:indoor or outdoor rental business, support hanging
    Structure:with back door,cooling fan,small position guiding pillar,side locks,and hanging design,precision die-casting cabinet suit for fix installation and rental projects, light weighted, fast assemble and easy maintenance,most use in rental business.


    Trade terms:

    Business term: FOB Shenzhen
    Payment term: T/T , usually 50% down payment before production, 50% balance to be paid before delivery,it also change according to total quantity.
    Delivery time:Production lead time less 20 sqm is about 8-15days, more than 50 sqm. is about 30days
    Free sample or not:Sample can be send within 3 days
    Shipping port: Shenzhen, Mainland China
    MOQ:LED Screen 1 sqm / LED module1pcs
    Guarantee:Two years quality guarantee
