Brand Name : | Dehao |
Model Number : | P2.5 |
Certification : | CE ROHS FCC |
Payment Terms : | T/T, Western Union, MoneyGram |
Delivery Time : | 10-15 working days after payment |
Price : | Negotiation |
Supply Ability : | 3000 square meters per month |

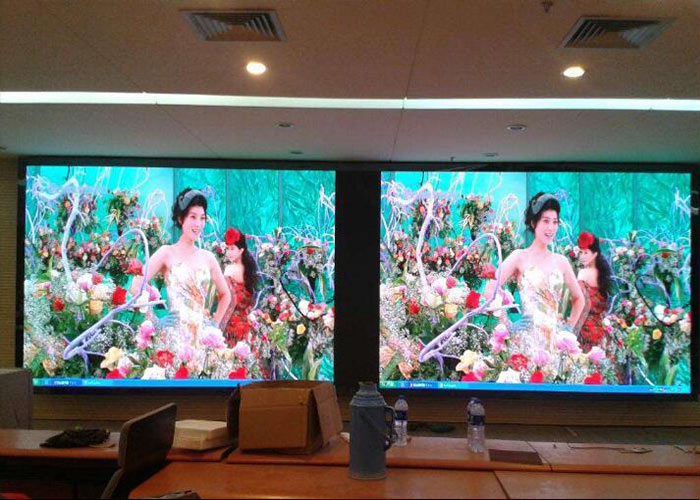

SMD2121 1/32 Scan P2.5 Fixed SMD Indoor LED Display for showroom/Meeting/Shopping Mall
Smooth surface, well brightness mixed, vivid images, fluent video, wide viewing angle.
-SMD2121 P2.5 full color Outdoor Led Module Advantage
1)Good quality plastic mask, strip to reinforce the brightness.
2)Silicon full of lamp legs.
3)Dedicate workmanship
4)1000uf capacitor, better for high temperature.
5)2020 IC, Customization with Nation Star Led and high refresh driver
IC is accepted.
6)Epistar,SMD2121,wide viewing angle.
7)high brightness
No. | Items | Specs Front View |
1 | Pixel Pitch | 2.5mm |
2 | Pixel Resolution | 160,000 Dots |
3 | Pixel Configuration | 1R1G1B |
4 | Unit Board Size(W*H) | 160.0mm * 160.0mm |
5 | Unit Board Resolution | 64 * 64 |
6 | Input Voltage (CC) | 4.8-5.5V |
7 | Brightness | >1000-1200cd/ |
8 | Horizontal Viewing Angle | 160° |
9 | Vertical Viewing Angle | 110° |
10 | Application Environment | Indoor |
11 | Flatness | Between adjacent pixels≤0.5mm |
12 | Scan Mode | 1/32 constant current |
13 | Max. Power Consumption | 17.5W |
14 | Module Net Weight | 0.2KG |
LED Screen Specifications | ||
No. | Items | Specs |
15 | Grey Level | 16384 levels |
16 | Display Color | 16777216 kinds |
17 | Best Viewing Distance | 2.0m-10m |
18 | Frame Rate | ≥60 Hz/s |
19 | Refresh Rate | >720 Hz |
20 | Brightness Adjustment | 256 level manual/automatic |
21 | Continuous Working Hours | >72 hours |
22 | Uniformity | Strong pixel light, even module brightness |
23 | Malfunction Dot Rate | <0.0001 |
24 | Average Power Consumption | ≤483 W/m2 |
25 | Max. Power Consumption | ≤683 W/m2 |
26 | Working Voltage | AC90-264V,47-63Hz |
27 | Storage Temp. | -20ºC ~ 60ºC |
28 | Working Temp. | -10ºC ~ 40ºC |
29 | Relative Humidity | 10%~90% |
30 | MTBF | ≥10,000 hours |
31 | Screen Life-span | ≥100,000 hours |
32 | Transmission Distance | Network Cable: <100m Multi-mode Optical Fiber:<300m Mono-mode Optical Fiber:300m-10km |
33 | Operating System | WINDOWS 98,WINDOWS NT, WINDOWS 2000 ,WINDOWS XP |
34 | Control System | Synchronous & Asynchronous Control |
35 | Control Mode | WINXP Computer + Control Software/hardware + Display Software/hardware |
36 | Protection | Moisture/dust/ Resistant, electrostatic prevention, shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage |
37 | Display Content | Word, Image & Video |
Delivery
1)delivery time: within 7-15 working days after receiving the
deposit.
2)before delivery, we will test the led display and keep it light
up for 72 hours,and check all the parts of the led display to
confirm everything is ok for shipment.
1. Delivery time: Accomplish manufacturing within 7- 15 days after
receiving the deposit.
Our Service
1)Support OEM&ODM or any your customized led display into
production.
2)The quantity the price. we can offer you more competitive price,
we are manufacturer.
3)Top quality+resonable price+good after sales service.
4)We are also looking forward distributor, they will get much
support from us.
Payment Terms
T/T in advance, 30% deposit and the balance 70% will be paid before shipment.
FAQ:
1. Are you manufacturer? If yes, in which city?
Yes, we're factory with 5000 square meters. And we're in Shenzhen
city, Guangdong Province.
2. Can I visit your factory?
We warmly welcome customers visit us. Before you come here, please
kindly tell me your schedule, we can arrange for you.
3. Can you provide me your catalogue?
We specialize in producing and developing all kinds of led
displays. As a reliable LED Display manufacturer and exporter in
China, we supply Indoor led displays, Outdoor led displays,
semi-outdoor led displays. Please kindly tell me which kind of the
item you prefer to and provide me more information. It will help us
to give you a good price.
Our features
1. Good price
Our price is 10% lower than the market because of the introduction
of full automatic production line with the characteristics of
reducing the cost of labor and management.
2. Lightweight
Aluminum cabinet greatly saving fright cost and conveniently
installing.
3. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours.
Malfunction dot rate
Less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
Nationstar, Kinglight,Epistar assuring high brightness and long
lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 3-year QA.
1. P1.25/1.667/P1.875/P1.923/P2/P2.5/P3/P4/P5...Indoor full color
led display;
2. P3/P3.33/P3.91/P4/P4.81/P5/P6/P8/P10...Outdoor full color led
screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
4. We ensure that our products are the CE certified, ROHS
compliant, FCC identified and passed the system of ISO 9001.
![]() |
