Intdoor P2.5mm LED Screen Panel:
P2.5 Indoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 2.5 |
| Pixel Density | Dots/sq.m | 160000 |
| Pixel Configuration | | Black body SMD2121 |
| Module Resolution | dots | 64×64 |
| Refresh Rate | Hz | ≥1200 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≤1500 |
| Gray Scale | Bit | 16 |
| IP Rating | | 31 |
| Power Consumption(Max/Avg) | W/sq.m | 600/300 |
| Input Voltage(AC) | V | 110~240 |
| Module Weight | Kg | 0.3 |
| Module Size(W×H) | mm | 160x160 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity | | 10%~90% |
| Driving Mode | | 1/32 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |

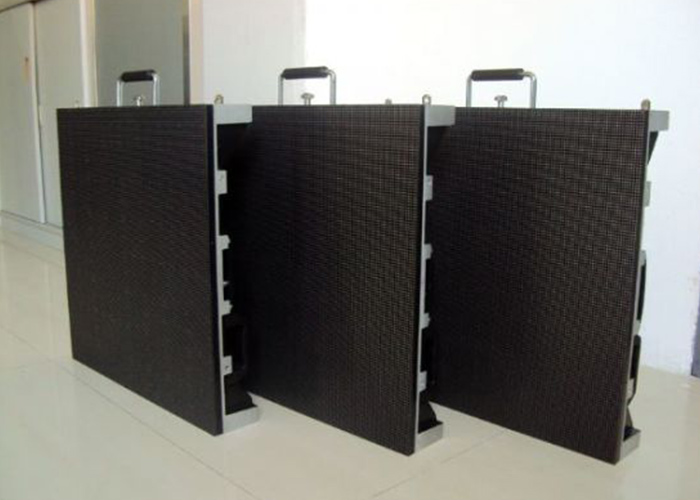

P2.5 Indoor Rental Full Color LED Display with 480mm * 480mm:
1) 16 bit color, 16384 gray scale, refresh rate over 2500HZ/S so
the video or images on the LED screen are very vivid and fresh.
People who see it will get shocked by this amazing viewing
experience.
2) The appearance is very elegant, it looks very high end. Quality
is very stable
3) It is die-casting aluminum cabinet, very strong and precision is
very high, tolerance can be controlled in 0.2mm so the surface is
very smooth, almost no gap between cabinets
4) The side locks is spring locks, this is unique among all
die-casting aluminum cabinets, especially popular in European
market and North American market
5) With power and signal connectors, Neutrik or Seetronic brand,
very easy to install and dismantle
6) High contrast rate up to 5000:1 by using black LED
7) The new structure design enables diversified installation to
meet the hanging-up and stacking requirements.
8) Due to the light weight and low power consumption, it can
reduces the labor cost,operating cost and transportation cost
9) Good thermal design, excellent heat dissipation even no fan
installation,
10).It is low noise, can be installed in office and meeting room.
Our service:
1. Enquiry response time: within 12hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already
have.
4. Protect your sales area, design idea and all your private
information.
5. Top quality + reasonable price + patient after-sales service.
6. Brilliant Opto can also offer you LED stage display, LED outdoor
video wall, wedding LED display, stage LED electronic screen and
LED large screen full color display.
Trade Terms:
1. Package: anti-shaking wooden package, air flight case or carton
package.
2. Payment: T/T, 30% deposit before production, 70% balance to be
paid before delivery.
3. Free to support and train your operator.
4. Shipping port: Shenzhen, Mainland China.
5. Warranty time: 2 years
6. Delivery time: 10-20 working days.
Products related:
LED Display /LED screen/LED Display Module/LED sign/LED video wall
1. Model No.: P1.9, P2.5, P3, P4, P5, P6, P7.62, P8, P10, P12,
P12.5, P13.33, P16, P20, P25 etc
2. Display Color: 256*256*256
3. LED Chips: Opto, Epistar, Silan, Sanan
4. Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply,
Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean
glue.
5. Cabinet: Standard cabinet, simple cabinet, customized cabinet,
cabinet for rental, Iron or Aluminum cabinet, cabinet for front
maintenance, cabinet with lock, special cabinet with Southco Lock,
for hung and rental and etc.
6. Package: Flight case, wooden box package & carton box and etc.
7. Guarantee: 2 years
