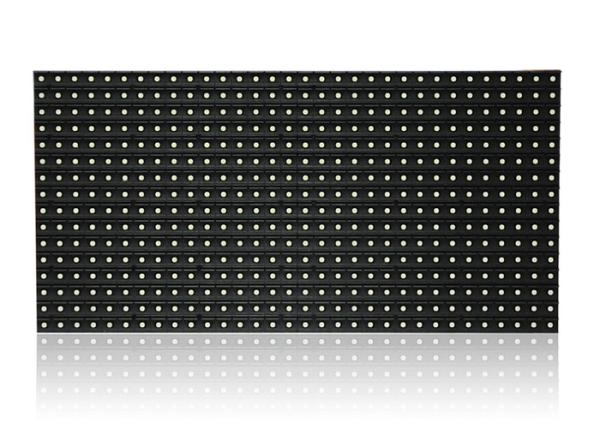

P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535

Shenzhen Dehao Optoelectronic Technology Co.Ltd
Contact Now
    Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers

    Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers
    • Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers
    • Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers
    • Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers
    • Buy cheap P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535 from wholesalers

    P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535

    Ask Lasest Price
    Brand Name : Yuto
    Model Number : P10
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 3000 square meter per month
    Delivery Time : 7-15 working days after deposit
    • Product Details
    • Company Profile

    P10 outdoor full color led display screen module 1/4 scan 320x160mm rgb smd3535


    1/4 scan 320x160mm rgb smd3535 p10 outdoor full color led display screen module


    Product Description

    Features:


    1.High brightness with 6500nits, the brightness could be adjusted.
    2.With Epistar SMD3535, high quality led lamps.
    3.Adopt grating air convention cooling, good heat dissipation.
    4.Strict waterproof test, ensure good waterproof IP65 of the cabinet.


    Parameter:


    Pixel Pitch10mm
    LED PackageSMD3535
    Pixel Density10,000 dots/
    Color Configuration1R1G1B
    BrightnessUp to 6500cd/ @ white color
    Refresh RateUp to 1920Hz/s, could be adjusted
    Gray Scale16.7M color (Synchronized)
    View AngleH:140°, V:120°
    Module Size320x160mm
    Cabinet Size960x960mm
    Cabinet MaterialIron/Aluminum
    Viewing Distance10-100M
    Drive Mode1/4 scan
    Power SupplyAC220V/110V/50 Hz, or manual switch
    Lifespan100,000 hours
    Trouble Free Time10,000 hours
    Working Temperature-20°C + 65°C
    Environment Humidity10% ~ 95%
    Control SystemLinsn/Nova

    At present, we mainly have these types in the following:

    • According to the using application: Outdoor LED Display with high capability of waterproof, half-outdoor LED Display and indoor LED Display.
    • According to the color: Single color type, Double color type and Full-color type.
    • According to the system: Offline system, which display your information by using a control card; online system synchronizes with the computer. And they can display words, pictures, video respectively or together.

    You can choose the proper type in accordance with your needs, and we can satisfy your demands as possible as we can.


    P10 SMD LED Outdoor Fixed Installation Video Screen LED DisplayP10 SMD LED Outdoor Fixed Installation Video Screen LED DisplayP10 SMD LED Outdoor Fixed Installation Video Screen LED Display


    Recommend LED screens:


    Classic Case:

    P10 SMD LED Outdoor Fixed Installation Video Screen LED DisplayP10 SMD LED Outdoor Fixed Installation Video Screen LED DisplayP10 SMD LED Outdoor Fixed Installation Video Screen LED DisplayP10 SMD LED Outdoor Fixed Installation Video Screen LED Display

    Packaging & Shipping

    P10 SMD LED Outdoor Fixed Installation Video Screen LED Display


    Our Services

    1. We provide a sum of spare parts to you together with the shipment(the details are as above), it included like LEDs, power supply, modules, cables…etc, and it’s enough for the replacement within 2 years.


    2. Two years warranty is provided for our products. That means two years of factory labor and components is provided for free, however the customer should pay for the round shipping cost for broken parts.


    3. For the technical support, we will send the installation drawings, user manual after the order is confirmed, and we can offer the free training for your technician in our factory until he can manage it well.


    4. For the installation, if you need, we can send an engineer to your country to help & instruct the installation, but need your side to pay for the round tickets and accommodation.


    5. For future service, if you meet any problems, our overseas engineer will service you online or by phone in 7x24 hours.
