HD Video Good Quality Small Pitch Display LED Screen Indoor Full Color P2

Product Description

Indoor stage, Banks, stock exchange centers, bus station,Theme park, Airport, Commercial advertising,
Mobile media.

Product feature

1.Thanks to the SMD triad technology, the screen is capable of wide viewing angle, smoother surface and stability.
2.Seamless splicing .
3.High gray level and lower brightness delivers good display performance and vivid image.
4.quick installation and easy maintenance, front or rear maintenance.

Specification

NO.	P2 Indoor Full Color LED Screen Display Module Parameter
1,Pixel tube box	1)Pixel pitch: 2mm 2)Pixel Density:250,000dots/m2 3)Show colors:Single red,Single blue,Single green 4)Light color:Red+Green+Blue
2,Full screen	1)Best viewing distance:≥2m 2)Best viewing angle:H100 degree,V160 degree Optional 3)Ambient Temperature(ºC): -10ºC ~ +50ºC 4)Relative Humidity:10%~90%
3,Power Supply	1)Working Voltage(V):AC 220V±15% 47-64HZ 2)Average Power Consumption(W/m2):600W/m2 3)Max Consumption(W/m2):1400W/m2
4,Control System	1)Control host:Unlimited 2)Operating system:Unlimited 3)Control method:Synchronous Control
5,Main Technical Parameters	1)Driving component :LED Special drive part 2)Driving Mode:1/32 Constant Current Driving 3)Frame frequency:≥60Hz 4)Refresh frequency:≥2000Hz 5)Equilibrium Brightness:≥1200cd/m2 6)MTTF:≥10,000h 7)Life span:100,000h
6,Software	General LED monochrome player software
7,Protection Technology	Damp proof,Dust proof,Anti corrosive,Static-free,Lighting protection,with over current, short circuit, over voltage, under voltage protection function.
8,Assembling Structure	Modular structure design

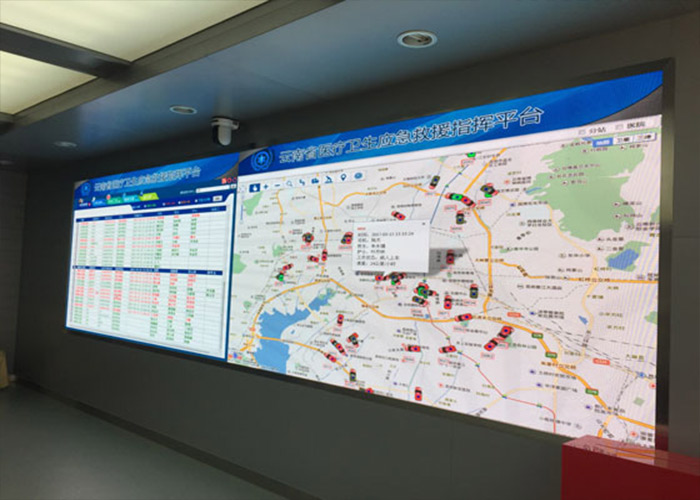

Case



Remark

1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: flight case & wooden case
5.Delivery time: 20 working days after deposit

Shenzhen Dehao Optoelectronics Technology Co., Ltd,was established in 2014, the company registered capital of 5.8 million yuan, more than 80 employees, is a high-tech LED optoelectronics industry private enterprises, is also the country's most well-known large-scale LED display wholesale Manufacturers. The company is committed to providing customers around the world professional LED display design, development, production, sales, engineering services as one of the best solution.

The Industrial Park is located in the LED industry's most concentrated Bao'an District of Shenzhen City, covers an area of over 4000 square meters, equipped with a fully equipped modern automatic assembly line, to produce up to 5000 square meters.

The company's main LED full color indoor high-definition display, LED full color outdoor high-definition display, LED small distance TV screen and other products. Products are widely used in municipal, real estate, business, military, culture, sports, radio and television and other fields.

Dehao Optoelectronics adhere to the leading technology strategy, relying on a unique three talent echelon strategy, brought together at home and abroad enjoy a high reputation of the top professional and technical personnel, laid a new product R & D and meet the special application of customers based.

Dehao Optoelectronics with advanced technology and scientific management methods to promote the development of enterprises, has passed ISO9001: 2008 quality management system, ISO1400: 2004 environmental management system, CCC, CE, FCC, RoHS and other qualifications. Dehao Optoelectronics established a number of marketing and service network, quality and quality assurance and improve the services, the products are exported to the United States, India, New Zealand, Japan, Thailand, Taiwan, Hong Kong more than 80 countries and regions.
