P2.5 fixed indoor full color led display with CE FCC ROHS UL certification

Product Description

Parameter:

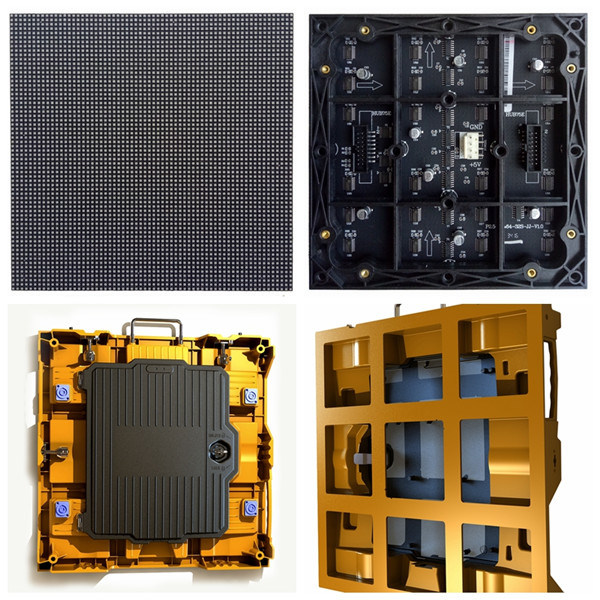

1.LED Module
Dot Pitch(mm)		2.5mm			Size(W×H)		160*160mm
Pixel Point(Dot/ m2)		160000 dots/m2			Resolution(W×H)		64 * 32 dots
2.LED Lamp
LED	Wave (Type)		Brand		Beam Angle
R	625±2.5nm		Epistar		140°		110°
G	525±2.5nm		Epistar
B	470±2.5nm		Epistar
Wavelength difference less than 2.5nm
3. Simply Cabinet or Wall Frame
Module sizes			160*160mm
Cabinet Size(W×H)			960mm * 960mm (rental can be: 640*640mm)
Led Display Area (Real)			Width(M)		High(M)	Real Display Sqm
			0.96		0.96	0.9216
Cabinet Quantity(PCS)			1 PCS
Module Quantity/cabinet			6*6=36pcs
Module Weight(g/pcs)			About 120g/pcs
4.Led Display Specification
ITME			SPECIFICATION
LED Display			Best View distance:2.5~15m
			Viewing angle-Horizontal :140 degree;
			Viewing angle-Vertical :110 degree
			Environment Temp: -40ºC ~ +85ºC
			Working Temp: -20ºC ~ +50ºC
			Operating Humidity Range:≤10~95%
Power Supply			Operating Voltage: 220V±5%
			Average Power: 300W/m2
			Max Power: 600W/m2
Control System			Control mode:synchronous control
			Host:P4-80G/512m or better
			Operating system:WIN7/WIN 98/ 2000/ NT/XP
			Graphic card:DVI
			Media card:PCTV
Main Technical Parameter			Full white brightness:≥1000nits
			Driving IC:MBI5124/5020 Led Driver
			Scan mode:1/32 scan
			Frame frequency:≥60 HZ/s
			Refresh rate:≥1920 HZ/s
			Grey scale levels/Color processing:65536levels, Process 16.7M colors
			Brightness adjustment mode: 100 levels available
			MTBF:≥10,000 hours
			Life-span:100,000 hours
			Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ;
			Uniformity:pixel light intensity, module brightness uniformity
			Power switch:Auto Switch
			power supply :5V/40A
			Network cable transition distance: 100m
			Multi-mode optical fiber transition distance:500m
			Mono-mode optical fiber transition distance:20km
Protection			Moisture, dust, resistant, electrostatic prevention, shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage.
Image performance			Text,word,all formats of pictures(BMP,JPG,GIF,PCX), as well as (MPG MPEG,MPV,MPA,AVI,VCD,SWF,RM,RA,RMJ,ASF...)

Product Features:

1) High brightness(>1000cd/㎡ ), adjustable.

2) Clear vivid image quality.

3) Good Raw Materials: Nationstar/Kinglight/ Epistar led chip, Chipone/MBI IC, G-energy/CL Power Supply.

4) Installation is simple by fast lock.

5) High stability and long span: Aging test at least 24 hours before shipment, 100, 000 hours life span.

6) Cabinet: Diecasting aluminum rental cabinets 480*480mm or standard iron waterproof 960*960 cabinets.

7) Package: Flight case, wooden box package & carton box and so on.

8) Guarantee:2 years.



Application:

Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector,
traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.









Package:

Flight case or wooden case or carton or customized.
